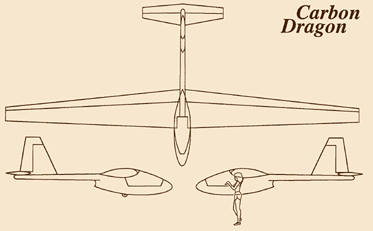

Specification for the Original Prototype Carbon Dragon



cd3way

SPECIFICATIONS

SPAN 44 FT.
AREA 140 SQ. FT.
A/R 12.9
EMPTY 145 LBS.
GROSS: NORMAL 300 LBS.
GROSS: MAX 335 LBS.
FLAPERONS FULL SPAN 30% CHORD
MAX L/D 25-1
MIN. SINK 100 FPM
cd3way2
