Recent Builders Photos Carbon Dragon [Created 1-25-2005]

Click on Photo for larger size photo ... note with some browsers, you may need to perform an additional click to zoom the image to full size. Use "Back Arrow" to return to this webpage.

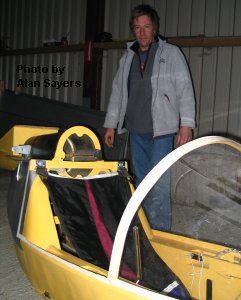

Ozzie shown with his fuselage ... [ med ] [ large ]

The wings weighs 27 lbs each.
    Fuselage, seat and harness 50 lbs.
    One Flapperon weighs 9.5 lbs.
    Rudder, tailplane and elevator weighs 9 lbs.

View from the rear ... [ med ] [ large ]

Hand-holds are visible for foot-launching (mid-point on arm rest).

Note the very colorfull seat sling.

First assembly photo ... what a great shop! ... [ med ] [ large ]

9/28/2003
Wing load tested the Dragon yesterday,Saturday. It passed at 3g 465 kilos approximately 1000lbs.
